Custom Logo Panoramic Padel Court (SSTD-001-6)

Custom Logo on an Enlarged Gusset Plate — Brand Every Corner, Reinforce the Base

SSTD-001-6 is our custom-logo panoramic padel court. The enlarged gusset plate at each corner post is laser-cut with your club or sponsor logo — a permanent, sticker-free brand display that also strengthens the post-to-ground connection. It shares the same premium hot-dip galvanized frame, 12mm tempered glass and 1.7×3m mesh panels as our flagship SSTD-001-1, and ships CE & ISO certified.

  • Laser-cut logo on enlarged gusset plate — no peeling
  • Reinforced corner-post base for greater impact resistance
  • Full hot-dip galvanized frame (same premium spec as SSTD-001-1)
  • Larger 1.7m × 3m long-format mesh panels, fewer seams
  • 20×10m regulation size
  • 12mm tempered glass
  • 8×200W LED floodlights
  • CE & ISO certified
  • Overview
  • Related Products

Custom Logo Panoramic Padel Court (SSTD-001-6)

A branded panoramic padel court featuring an enlarged reinforced gusset plate with optional laser-cut logos and larger 1.7m × 3m mesh panels. Designed to combine structural reinforcement with customized branding for professional sports facilities.

Key Features of Custom Logo Panoramic Padel Court

✓ Enlarged reinforced gusset plate ✓ Optional laser-cut logo customization
✓ Hot-dip galvanized frame (premium spec) ✓ Larger 1.7m × 3m mesh panels
✓ Regulation size 20×10m ✓ 12mm explosion-proof tempered glass walls
✓ 8×200W IP65 LED floodlights (300 LUX) ✓ CE & ISO certified

What Makes the SSTD-001-6 Different from Standard Panoramic Padel Courts?

Enlarged gusset plate with laser-cut logo: The SSTD-001-6 features an enlarged reinforced gusset plate at the base of each corner post. Customers can customize the plate with a laser-cut logo, integrating their club or sponsor branding directly into the court structure. Unlike stickers or external banners, this built-in design provides a more permanent and professional branding solution compared with the Standard Panoramic Padel Court (SSTD-001-1/2/3).

Larger mesh panels: The SSTD-001-6 uses upgraded 1.7m × 3m long-format mesh panels, replacing the smaller square panels used in the standard series. The larger format reduces panel seams and creates a cleaner overall appearance.

Shared premium specifications: The court maintains the same 20×10m regulation dimensions, tempered glass, artificial turf, lighting and hot-dip galvanized frame specification as the SSTD-001-1 premium model.

Custom Logo Padel Court – Built-In Branding Design

Laser-cut your logo directly into an enlarged reinforced gusset plate and turn every court corner into a branded feature.

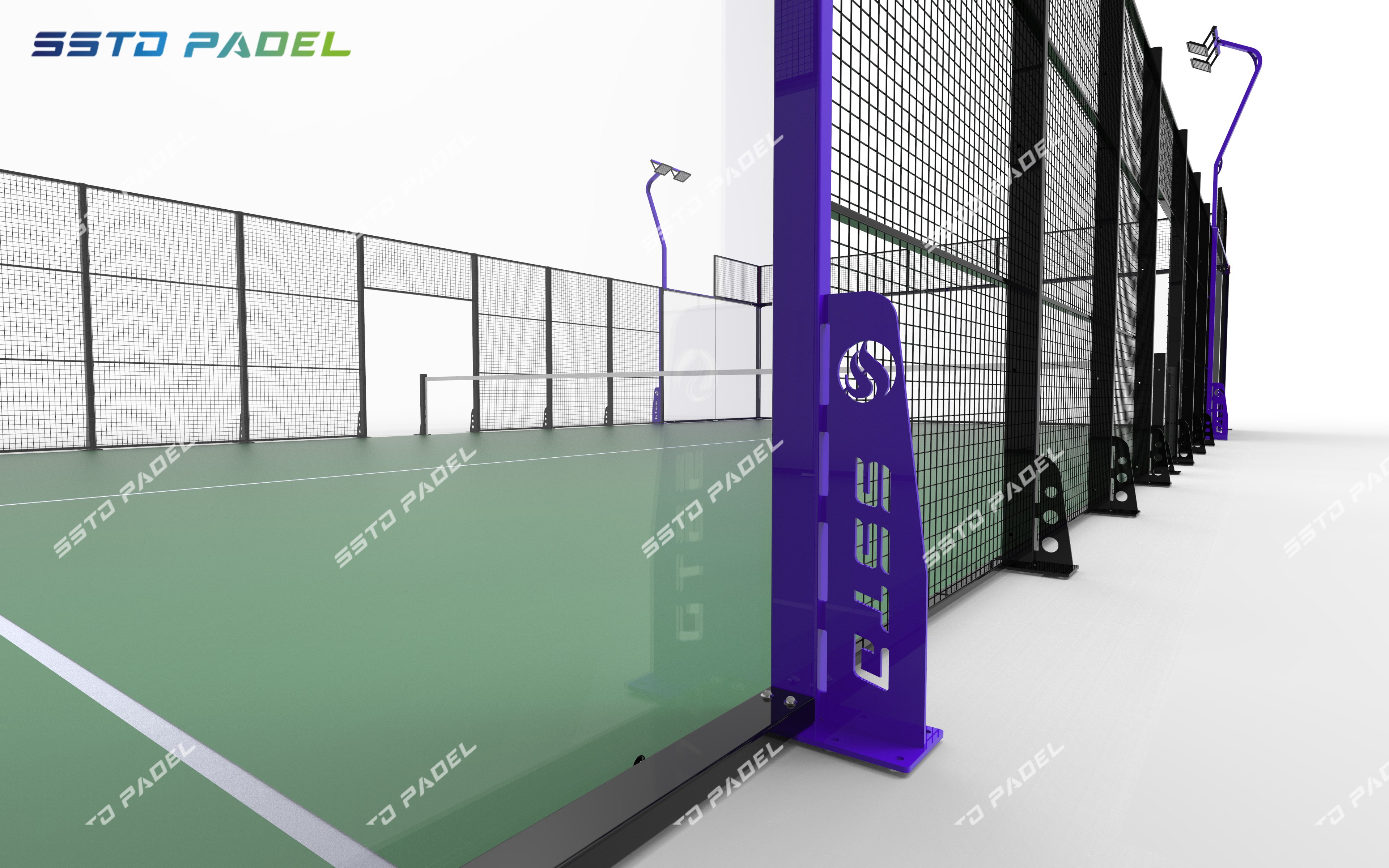

Custom laser-cut logo on enlarged gusset plate of panoramic padel court

The enlarged gusset plate is a reinforced vertical plate welded at the base of each corner post. It strengthens the post-to-ground connection while providing a dedicated surface for displaying your club, company or sponsor logo.

  • Reinforced base connection – The larger gusset plate distributes impact loads over a wider area, helping reduce stress around the bolt joint.
  • Integrated brand identity – Your club or sponsor logo is laser-cut directly through the steel plate.
  • Durable finish – The logo is integrated into the steel structure and finished with the same powder coating as the frame.
  • Ready for installation – Send us your artwork, and the branded plates can be prepared and installed on the frame before shipping.

Larger Mesh Panels (1.7m × 3m)

Large 1.7m x 3m mesh panels for panoramic padel court

The SSTD-001-6 features upgraded 1.7m × 3m long-format mesh panels, replacing the smaller square panels used in the standard panoramic padel court series.

  • Fewer panel seams create cleaner sightlines and a more open visual appearance.
  • 4mm wire, 50×50mm grid and electrostatic powder coating maintain the specified mesh construction.
  • Larger panel formats make handling and bolted assembly more convenient.

The upgraded mesh configuration gives the court a cleaner overall appearance while helping installers reduce panel alignment work during assembly.

Specifications

Court size 20m (L) × 10m (W)
Frame Hot-dip galvanized steel (premium spec, same as SSTD-001-1)
Gusset plate Enlarged reinforced plate with laser-cut logo
Artificial turf 12mm curly sand-filled, 63,000 stitches/㎡, Dtex 5900, quartz sand 60–100 mesh 5–10kg/㎡, BPR ≥ 80 (EN 15330-1:2013)
Tempered glass 2000×3000×12mm explosion-proof (GB 15763.2-2005 , EN 12150-1:2015+A1:2019 , EN 12150-2:2004)
Lighting 8×200W LED floodlight, 300 LUX, IP65 (EN IEC 60598-1:2021+A11:2002 , EN IEC 60598-2-1:2021)
Mesh 4mm wire, 50×50mm grid, electrostatic powder coating (EN 10223-1:2012 , EN 10223-4:2012)

Components of custom logo panoramic padel court

Certified Manufacturing Process

✓ CE compliant products ✓ ISO certified factory ✓ Steel structure inspection ✓ Pre-shipment quality check

CE and ISO certificates for panoramic padel court manufacturing

Our Padel Court Factory

SSTD operates a dedicated padel court manufacturing workshop in Tianjin, China, equipped with laser cutting, CNC welding and shot-blasting lines for consistent production of panoramic padel court structures.

A 3-day production turnaround per site helps keep lead times short, while pre-shipment inspections are carried out before delivery to check product quality and manufacturing specifications.

Over 1800 courts have been shipped in 2 years to clubs, hotels and resorts across multiple continents.

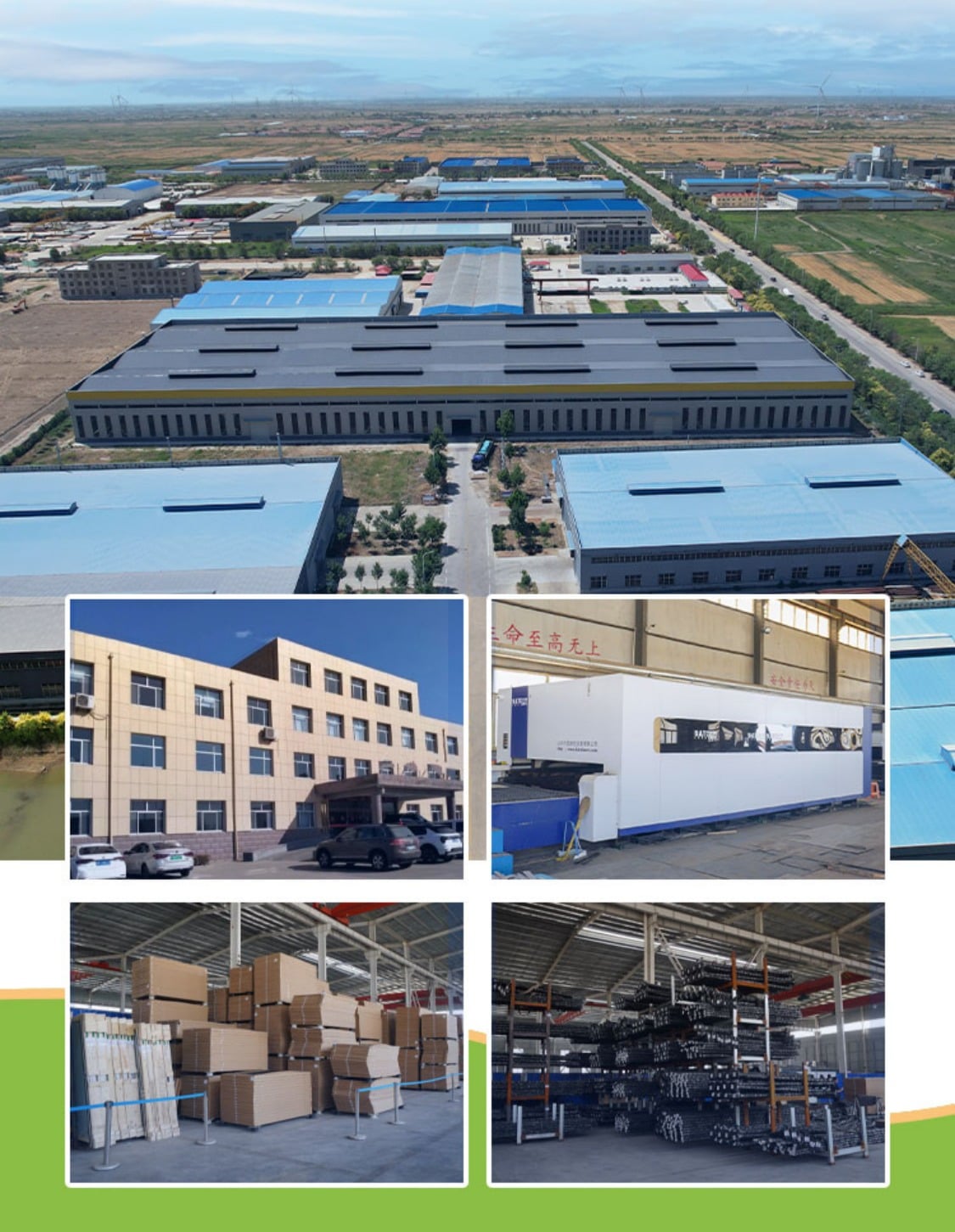

SSTD panoramic padel court manufacturing factory

Custom Logo Padel Court – Artwork & Production Process

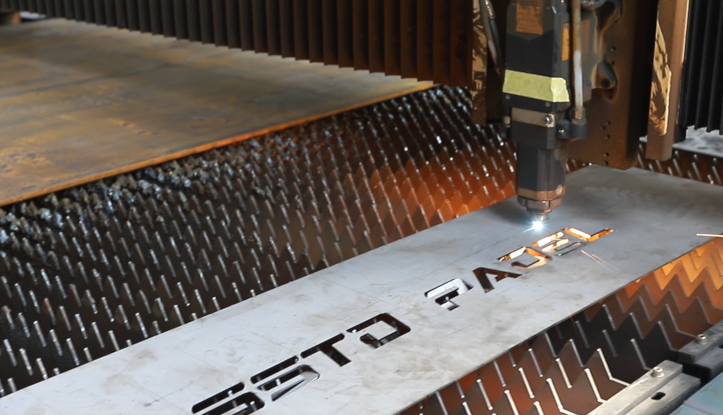

Laser cutting custom logo into steel gusset plate for padel court

Laser cutting your logo directly into the enlarged gusset plate.

Send us your artwork, and our team will handle the customization process. Your logo is cut directly into the steel plate rather than printed or applied as a sticker, creating an integrated branding feature for your panoramic padel court.

  1. Confirm placement and size – We determine the logo position and dimensions on the enlarged gusset plate, ensuring it does not interfere with bolts or glass.
  2. Submit your artwork – AI, EPS, PDF or high-resolution PNG/JPG files with transparent backgrounds are preferred.
  3. Approve the mockup – We provide a digital preview showing the logo size, position and laser-cut effect before production.
  4. Laser cutting and finishing – The logo is laser-cut through the plate and finished with the same powder coating as the frame.
  5. Packing and shipping – Customized plates are installed on the frame before shipping, ready for on-site assembly.

Explore Related Panoramic Padel Court Models

Different sports venue projects may require different court structures and visual configurations. Explore our other panoramic padel court options:

Get a Quote for Your Custom Logo Padel Court

Tell us your required model (SSTD-001-6), order quantity and logo customization requirements. Send us your artwork to discuss the design and get a project quotation.

Inquire Now

Frequently Asked Questions

Q: What makes the SSTD-001-6 different from a standard panoramic padel court?

A: The SSTD-001-6 features an enlarged reinforced gusset plate with optional laser-cut logo customization and larger 1.7m × 3m mesh panels. These upgrades provide integrated branding and a cleaner overall court appearance compared with standard models.

Q: Can I customize my company or club logo on the padel court?

A: Yes. Your company, club or sponsor logo can be laser-cut directly into the enlarged gusset plate. Send us your artwork, and we will prepare a digital mockup for approval before production.

Q: What file formats are accepted for logo customization?

A: AI, EPS, PDF and high-resolution PNG/JPG files with transparent backgrounds are preferred. Vector artwork is recommended for accurate laser cutting.

Q: What is the difference between the SSTD-001-6 and SSTD-001-1?

A: Both models share the same premium hot-dip galvanized frame specification and main court configuration. The SSTD-001-6 adds an enlarged reinforced gusset plate with optional laser-cut branding and upgraded 1.7m × 3m mesh panels.

Q: What is the production and delivery lead time?

A: Production takes approximately 3 days per site. Delivery typically takes 10–25 days and may take up to 45 days depending on the destination.

Q: What warranty do you provide?

A: Under normal usage conditions, we offer an 8-year warranty on hot-dip galvanized steel components and a 5-year warranty on other products.

Q: How can I verify your manufacturing quality?

A: We can provide product samples, support third-party inspections arranged by clients and offer virtual factory tours via video conferencing. Customers are also welcome to visit our factory.

Q: Do you have experience exporting panoramic padel courts?

A: Yes. Our padel courts have been exported to many countries across Asia, Europe, the Middle East and South America, giving us experience in international sports facility projects.
