Customized Football Cage with Perimeter Boards and Safety Netting
Build More Than a Field. Build a Complete Football Facility.
Modular football cage systems with galvanized steel structure, perimeter boards, sports netting and configurable pitch sizes for schools, clubs, sports centers, communities and commercial venues.
- ① Fully Customizable: Unlimited Sizes | 3 Recommended Presets
- ② Custom colors and logo applications
- ③ Modular steel frame and enclosed playing area
- ④ Project-based indoor and outdoor solutions
- Overview
- Related Products
- Compact sports areas
- Youth / technical training
- Recreational football
- Community & private facilities
- Small-sided football activities
- Football academy training
- School & community facilities
- Commercial recreational venues
- Larger football training projects
- Sports clubs & academies
- Commercial sports facilities
- Community & institutional sites
- Galvanized Q235 Steel Frame — main posts, crossbeams, side-panel tubes and goal-frame components specified in Q235 steel with galvanized surface treatment.
- Composite Perimeter Boards — lower perimeter uses composite panels supported by Q235 steel framing; panel color and logo artwork configurable.
- Sports Netting & Wire Rope — white netting, Ø5 mm wire rope, rope clamps and ferrule-clamp components enclose the upper playing area.
- Connector & Bolt Assemblies — connector plates and button-head hex socket bolts with spring washers, flat washers and lock nuts.
- Access Gate — designed as part of the enclosed structure; size, hinge, latch and lock confirmed per project.
- Goal-Frame Structure — Q235 galvanized goal frame included in current drawings; confirm whether goal net is in supply scope.
- Playing Surface — premium artificial turf specifications are detailed below; confirm turf, base, line marking, infill and drainage scope in your quotation.
- Pitch dimensions and overall footprint
- Panel colors and customer logo / graphic artwork
- Netting configuration and wire-rope layout
- Gate position, hardware and access direction
- Goal-frame configuration and ground fixing
- Playing-surface, lighting, roof or other facility items
Customized Football Cage with Perimeter Boards and Safety Netting
Build More Than a Field. Build a Complete Football Facility.
Modular football cage systems with galvanized steel structure, perimeter boards, sports netting and configurable pitch sizes for schools, clubs, sports centers, communities and commercial venues.
Key Features
| ✅ Galvanized Q235 steel frame | ✅ Composite perimeter boards |
| ✅ Sports netting + Ø5mm wire rope enclosure | ✅ Modular, bolt-connected structure |
| ✅ 3 sizes: 15×10 / 30×15 / 40×20 m | ✅ Custom logo & color branding |
| ✅ Enclosed playing area, ball control | ✅ CE & ISO certified factory |
What Is a Football Cage?
A football cage is an enclosed football playing area surrounded by perimeter boards, sports fencing or safety netting. By keeping the ball within the playing area, the system supports continuous play, compact site planning and efficient use of sports facilities.
This product family is designed as a modular sports facility rather than a standalone goal or fence. A complete project may include a galvanized steel frame, composite perimeter boards, sports netting, access gates, goal-frame components, playing surface and ground works, depending on the confirmed scope of supply.
Why Choose a Football Cage?
Perimeter boards and netting keep the ball inside, reducing interruptions and improving the flow of small-sided games and training.
An enclosed layout suits compact sites where a conventional open football field is not practical. Clearances and local requirements confirmed during design.
Built from coordinated steel, panel, netting and connection components — supports transport planning and future adaptation, subject to engineering review.
Composite perimeter panels can be set in selected colors and may support customer logo artwork after production requirements are confirmed.
Considered for schools, clubs, academies, communities, hotels, resorts and commercial sports centers.
Can be developed as part of a wider package \— playing surface, lighting, access, drainage, foundations and installation support, by project scope.
Three Presets Configurations for Different Sites
The SSTD-010 series shares one product-family concept with three Presets footprints for compact, medium and larger project sites. Presented as model configurations — not official competition pitches unless project specification confirms the applicable standard.
 |

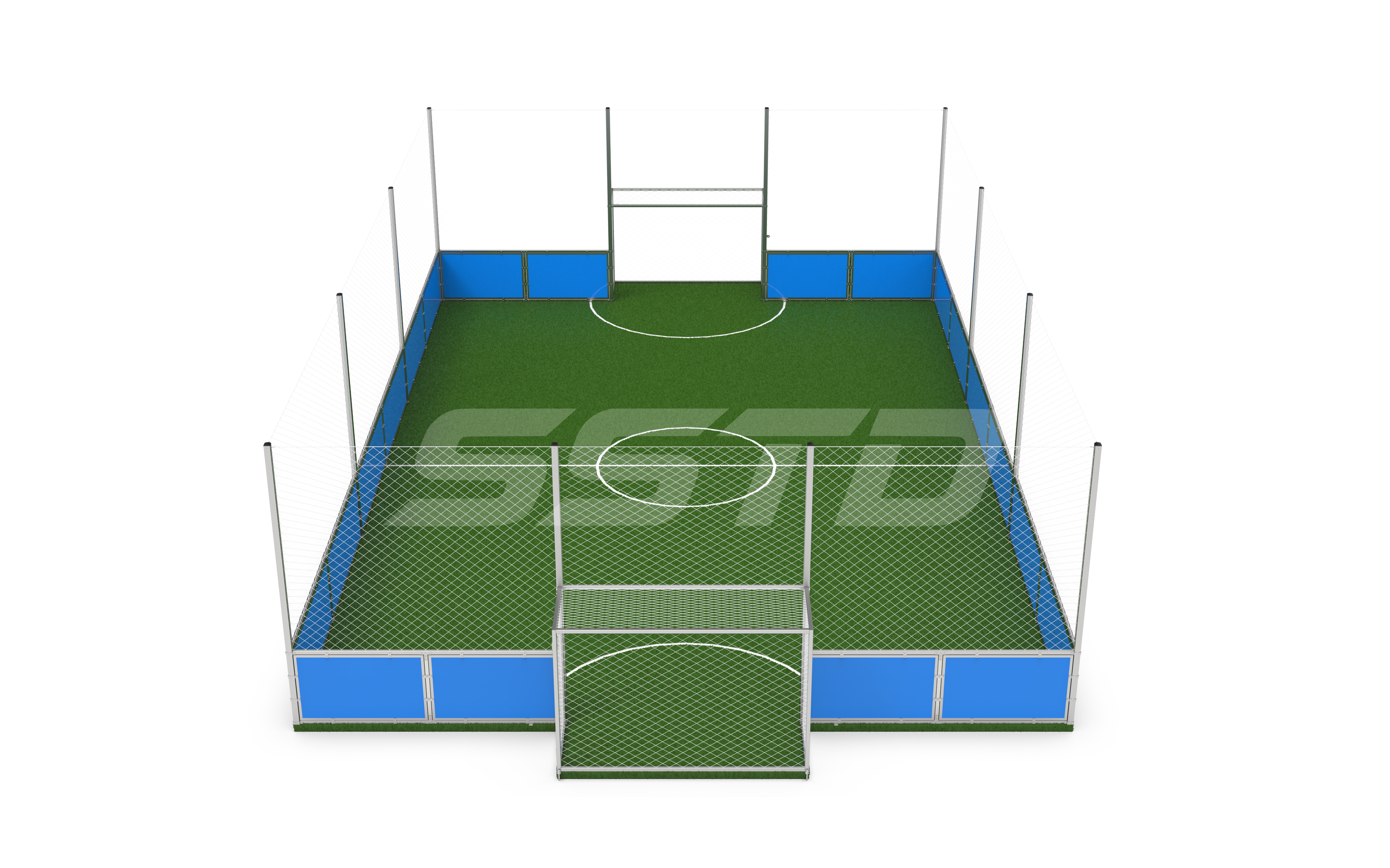

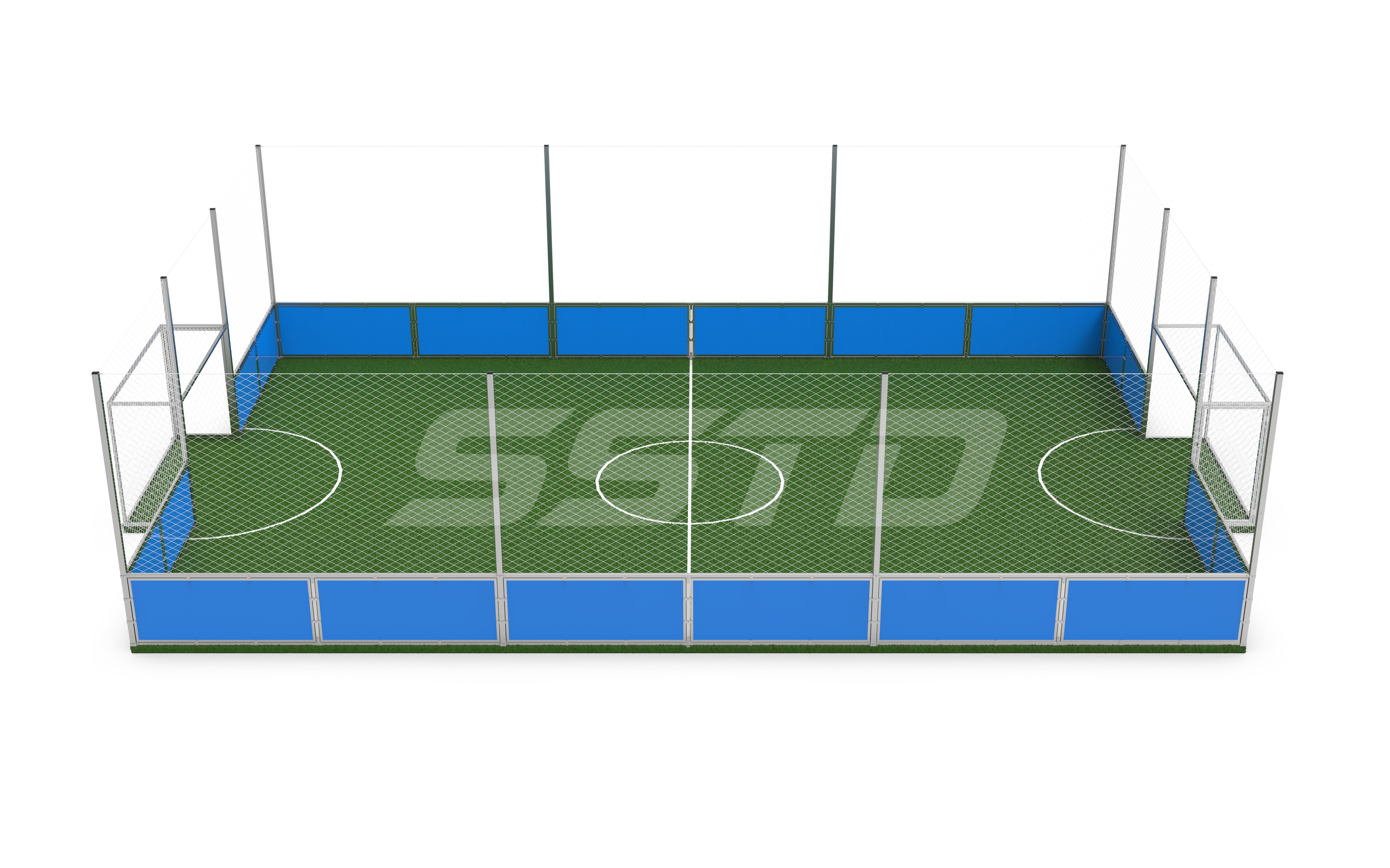

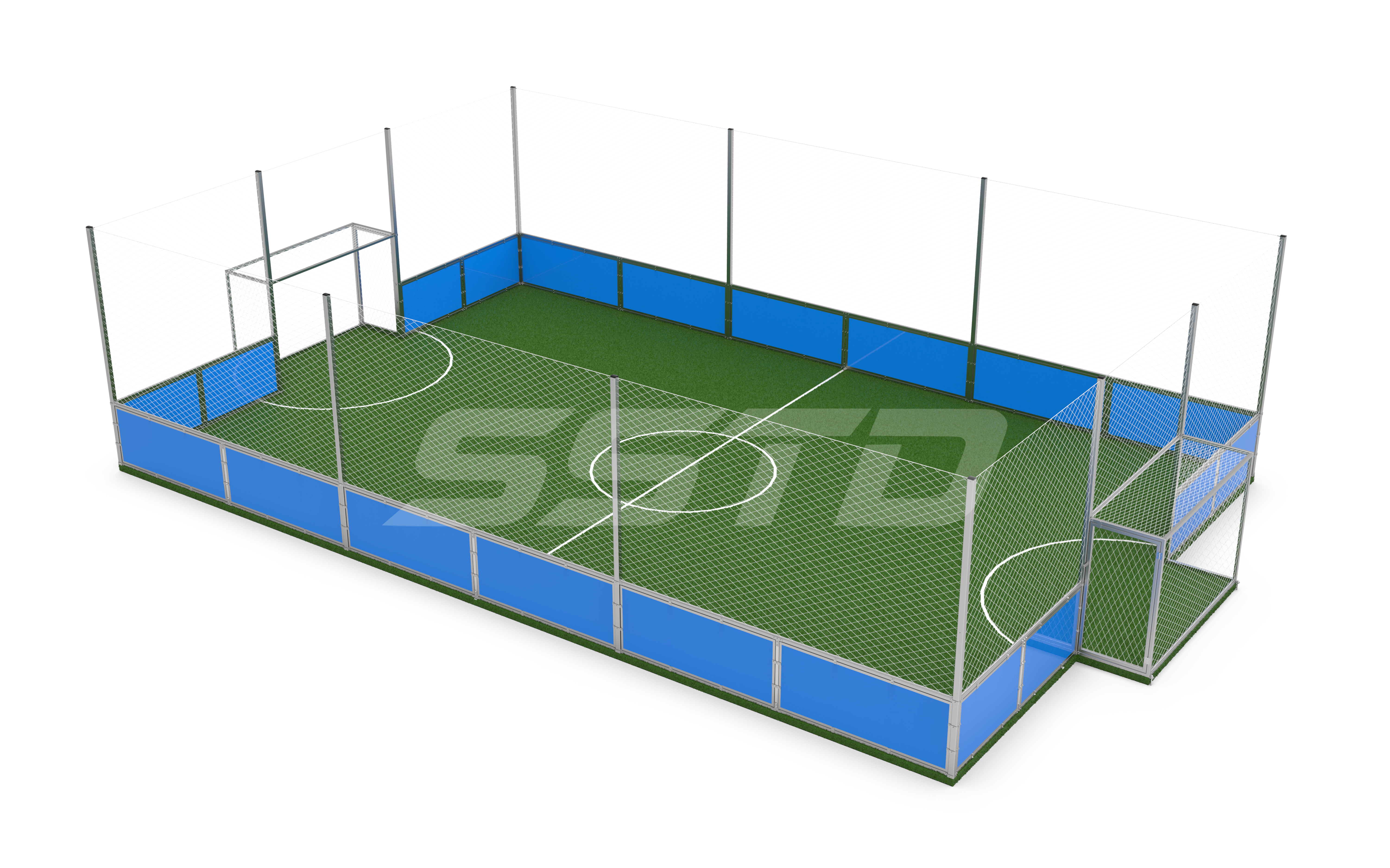

SSTD-010-1 | 15 m × 10 m Compact Football CageA compact configuration for restricted sites, training activities and recreational football projects. |

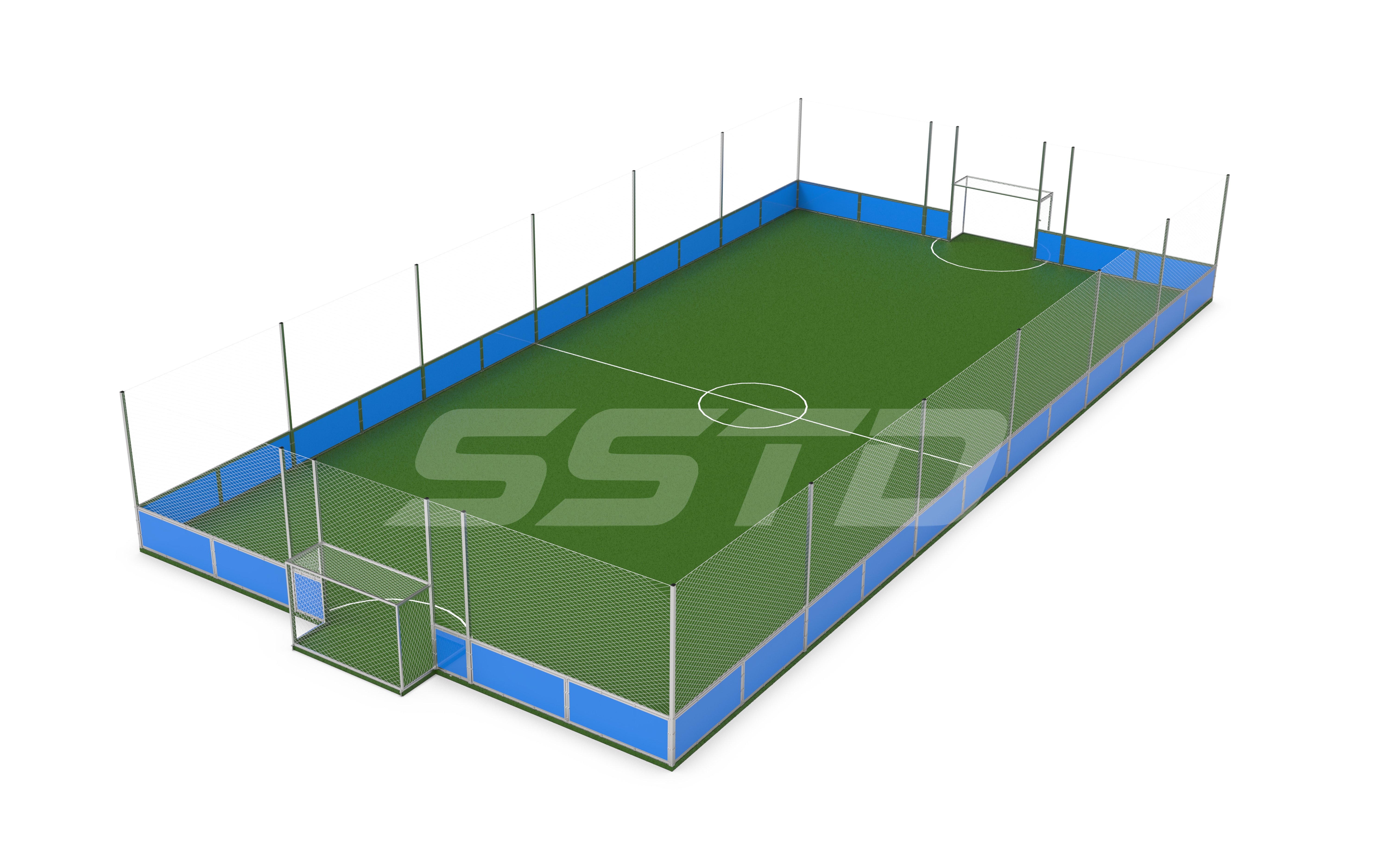

SSTD-010-2 | 30 m × 15 m Medium Football CageA medium-size configuration for small-sided football, training and recreational facilities. |
 |
 |

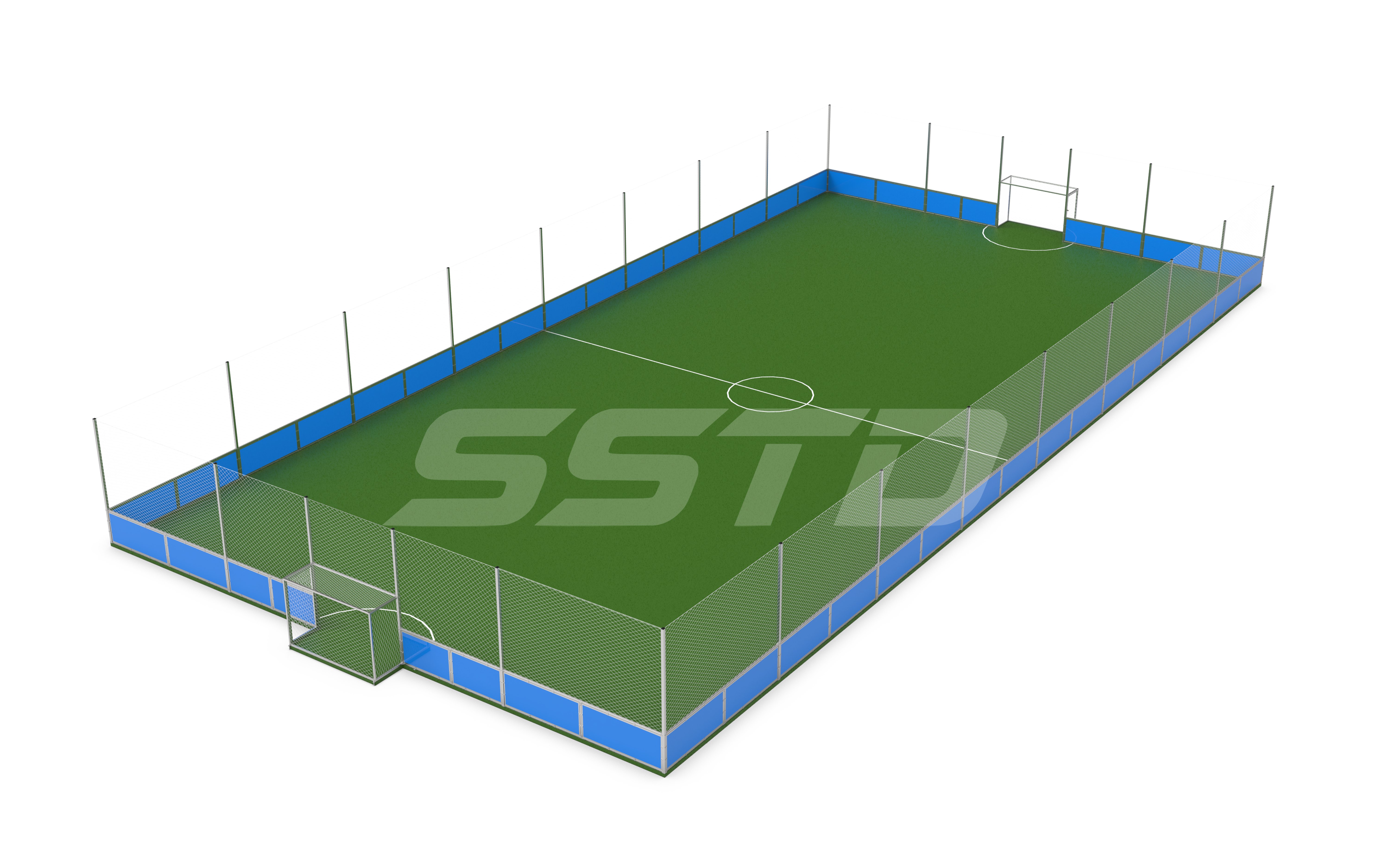

SSTD-010-3 | 40 m × 20 m Large Football CageA larger configuration for sports facilities that require more playing area and greater project capacity. |
Custom size available on request. Confirm whether listed dimensions are the clear playing area or the full installed footprint for your site.
Engineered System Components

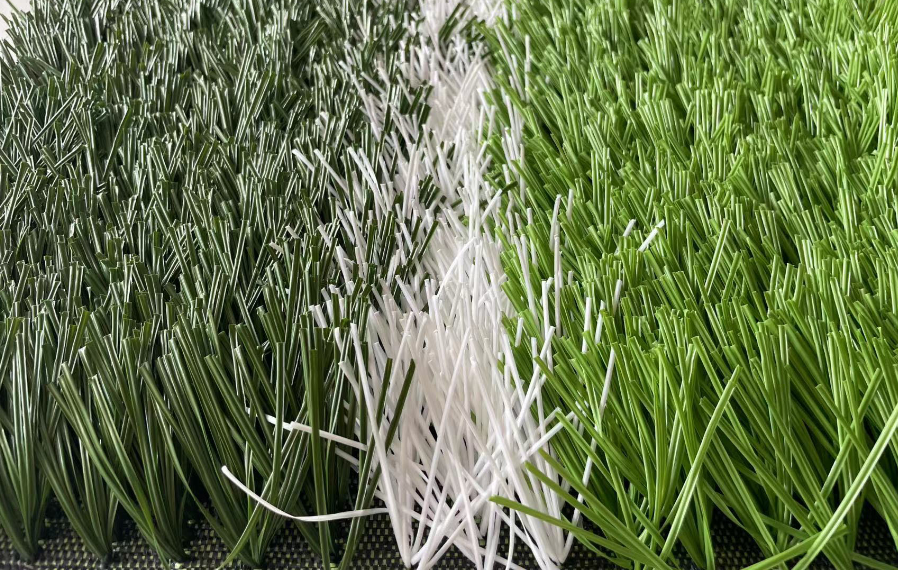

Premium Artificial Turf Option
The SSTD-010 football cage can be supplied with a high-grade football turf. The specification below uses a dense PE monofilament yarn built for heavy use and consistent ball roll — the same quality level used in premium small-sided football projects.
| Turf color | Dual-tone (dark + light) |
| Yarn | PE monofilament, straight 6-strand |
| Pile height | 50 mm ± 1.0 mm |
| Gauge | 5/8 inch |
| Dtex | 11,000 Dtex ± 2% |
| Stitch rate | 167 stitches / m |
| Density | 10,500 ± 3% stitches / m² |
| Backing | Single-layer + mesh reinforcement |
| Coating | SBR latex |
| Turf weight | 2.3 ± 3% kg / m² |
| Roll width | 4 m (roll length cut to site size) |
| Drainage | Hole drainage, permeability ≥ 30 L / min / m² (no infill) |
Specifications
| Available models | SSTD-010-1 / SSTD-010-2 / SSTD-010-3 |
| Model sizes | 15×10 m / 30×15 m / 40×20 m (configurations) |
| Main steel grade | Q235 |
| Surface treatment | Galvanized (hot-dip process to be confirmed per order) |
| Perimeter panel | 50 mm composite panel with Q235 frame |
| Posts | 80 × 80 × 2.5 mm Q235 steel, galvanized |
| Crossbeams / Side-panel tube | 50 × 50 × 2 mm Q235 steel, galvanized |
| Goal frame | 50 × 50 × 2 mm Q235 steel, galvanized |
| Wire rope | Ø5 mm |
| Netting | White netting; current drawing indicates 6 mm rope & 100 mm mesh |
| Connector plates | T = 5 mm Q235 steel |
| Logo & colors | Custom logo and colors available |
| Certification | CE & ISO certified factory |
Certified Manufacturing Process

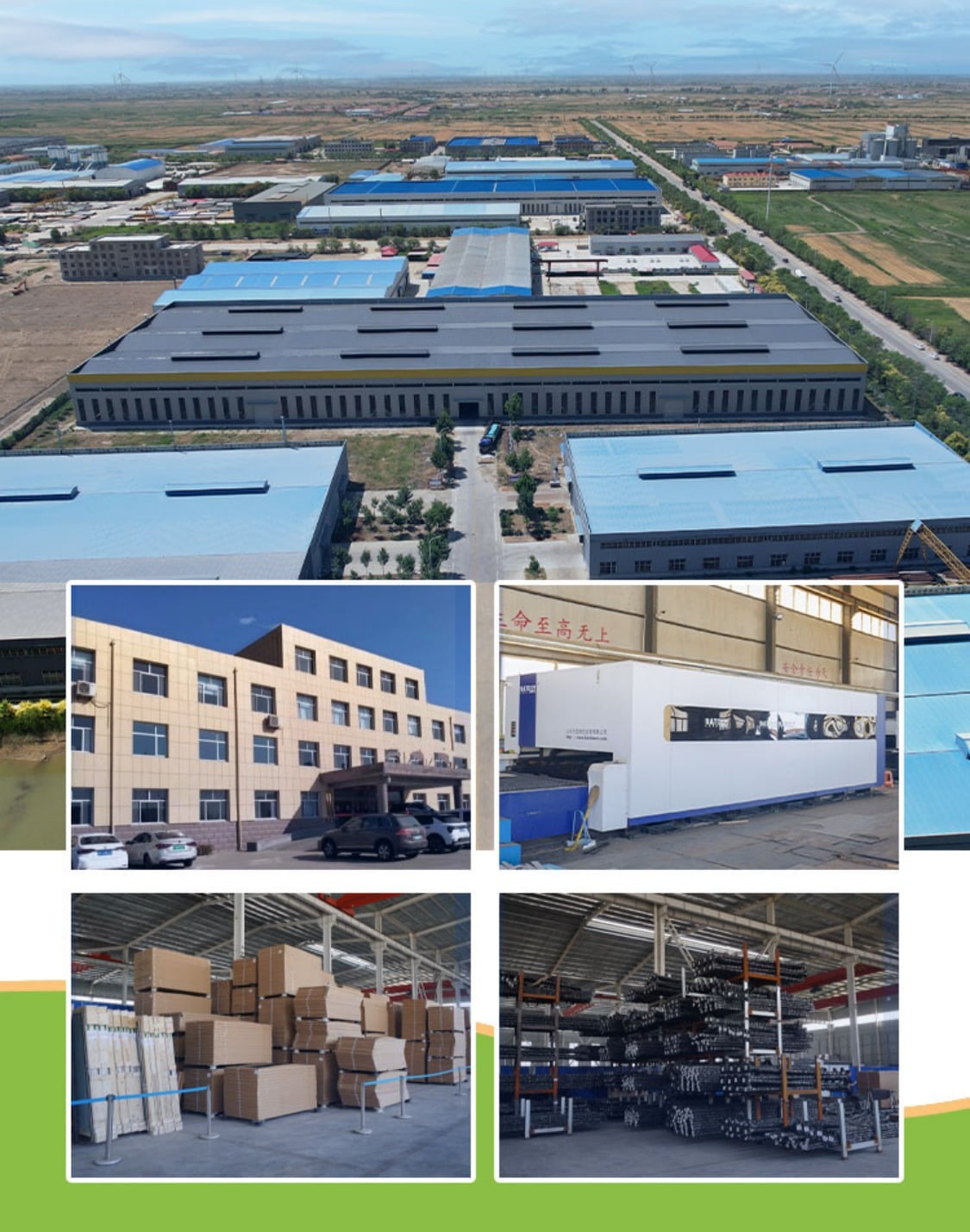

Our Factory
SSTD operates a dedicated sports-facility manufacturing workshop in Tianjin, China, equipped with laser cutting, CNC welding and shot-blasting lines for consistent output.
A 3-day production turnaround per site keeps lead times short, while pre-shipment inspection ensures every project meets CE and ISO standards before it leaves the warehouse.
Our established padel-court line has shipped 1800+ courts in 2 years to clubs, hotels and resorts across multiple continents — the same workshop now builds the SSTD-010 football cage series.
Configure Around Your Project
Customization is confirmed on a project-by-project basis and may include:

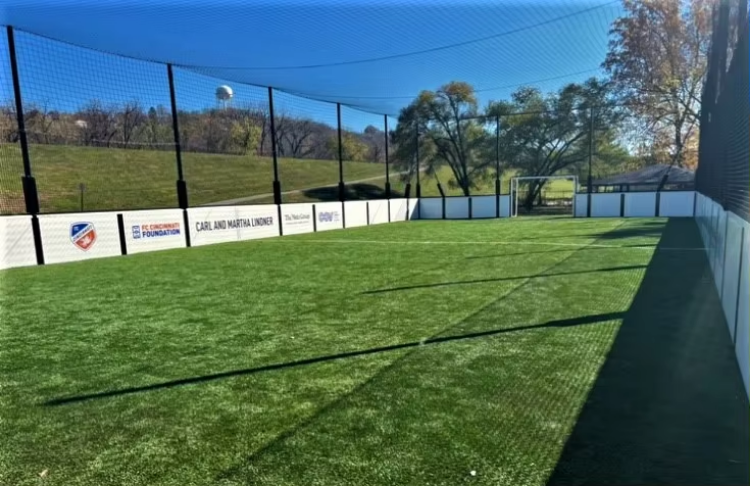

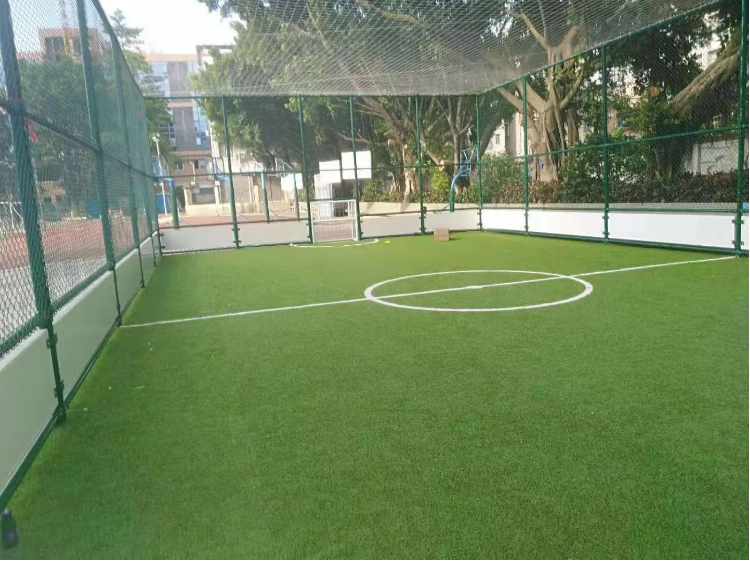

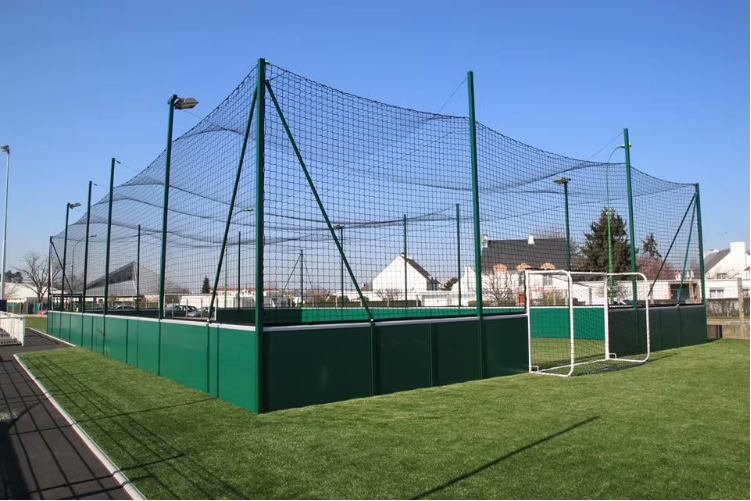

Project Reference
Real-world football cage installations for schools, clubs and community projects.
Send us your site dimensions, intended use and target configuration to receive a project-based recommendation.
Planning a Football Cage Project?
Send us your available site area, location, intended use and preferred size — we'll match the SSTD-010 configuration that fits your project.
Request a Project QuoteFAQ
Q: What is a football cage?
A: A football cage is an enclosed playing area surrounded by perimeter boards, netting or fencing that keeps the ball in play. It supports small-sided games, training and recreation within a compact footprint.
Q: How is it different from an open football field?
A: A cage encloses the ball and playing space with boards and netting, so you need less buffer area and lose less time retrieving balls. An open field relies on open boundaries and needs more space and ball-retrieval access.
Q: What sizes are available?
A: The SSTD-010 series comes in three standard configurations — 15×10 m (compact), 30×15 m (medium) and 40×20 m (large). Custom sizes are available on request.
Q: Can color and logo be customized?
A: Yes. Perimeter boards can be finished in your chosen colors, and your logo can be applied to the panels. Share your artwork and color reference when ordering.
Q: Is artificial turf included?
A: We offer a premium artificial turf option — see the specification above. Turf, base, line marking and drainage are included in your project quotation based on site needs.
Q: Can it be used outdoors?
A: Yes. The galvanized steel frame and weather-resistant materials suit both indoor and outdoor installations.
Q: What is the lead time?
A: 3-day production plus sea freight. Typically 10–25 days, up to 45 days depending on destination.
Q: Do you provide installation?
A: We supply a complete installation video. The frame is bolt-connected, so it can be assembled on site with basic tools.
Q: Is there a warranty?
A: We provide free replacement for any parts damaged during delivery.
Q: Can you deliver a complete project package?
A: Yes. We quote SSTD-010 as a complete package — steel frame, perimeter boards, netting, gate, goal frame, and optional turf, lighting and foundations. Tell us your site requirements and we'll scope it.
